Find 3.2V 230ah Calb Battery, 230ah LiFePO4 Battery Cell, 3.2V Lithium Iron Phosphate Battery on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.

Inquiry Basket (0)
Home > Products > LiFePO4 Battery > CALB Battery > LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah

LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah

Product Description

  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Applications
  • Company Profile
  • FAQ
Product Description

LiFePO4 Lithium iron phosphate battery CALB 3.2V 230Ah.

Now we provide CALB brand new models L173F230 3.2V 230Ah with aluminum shells, that support bolting or welding.
With long cycle life, high energy density, and wide operating temperature range, they are excellent choices for electric vehicles, telecom towers, energy storage systems, marines, etc.


Features:
1.Qualified for UN38.3/MSDS,RoHS,CE,TUV,UL with high safety.
2. internal safety valve is used to enhance safety.
3.Ceramic membrane technology applied to enhance safety.
4.Battery shell material is flame retardant.
5.Widely applied in EV&large-scale energy storge.

Detailed Photos
 LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah


LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah


Product Parameters
 NoItemParameter Specification
1Model No. L173F230
2Nominal Capacity230Ah
3Operating voltage2.5~3.65V
4Internal Resistance≤0.3mΩ
5Life cycle @1C,80%DOD4000cycles
6Charging(CC-CV)Standard Charge~4h
Fast Charge~1h
Standard Charging Voltage3.65V
Charging Temperature25±2ºC
Absolute charging Temperature-5~60ºC
Absolute charging voltageMax 3.8V
7DischargingContinuous discharge Current100A
Maximum Discharging Current
(Long Pulse)
200A
Maximum Pulse Discharging Current
(Short Pulse)
300A
8Storage Humidity< 70%
9Battery Weight4.17±0.16kg
10Shell MaterialAluminum
11Cell Dimensions173.93*53.72*207.2
Certifications

LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah

Packaging & Shipping

The Lithium Battery is Dangerous Good for shipment by Sea and By air and they should be shipped under the regulation of UN3480. All EVL
Batteries are packaged by DG plywood case and we provide UN38.3 test reports and MSDS. Please check shipping cost before place
Order: The lithium battery is Dangerous Good, the shipping cost is very different, so please check the shipping cost before placing an order.

LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah
LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah

Applications

Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools... Solar and wind power system, RV, caravan...Back-up system and UPS.
LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah

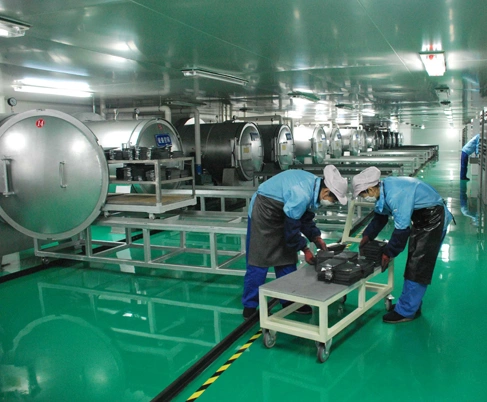

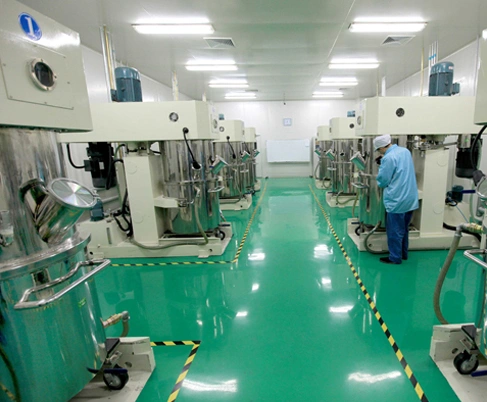

Company Profile

LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah
LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah
LiFePO4 Lithium Iron Phosphate Battery Calb 3.2V 230ah




EVL Battery Limited is a leading NCM Lithium Battery manufacturer from China and its public company in the Hongkong Stock Exchange
market. There are 4 factories in Fujian and Guangdong. The production capacity of 4 factories is as much as 20 GWh per year. EVL Battery
Limited is the number one Lithium Battery manufacturer from China.

Our Services & Strength
We provide high-quality EVL Battery to clients all over the world and help clients deliver batteries from China to them by sea and by air at a
reasonable price. And we provide the necessary technical support and warranty to you!

FAQ



Q: What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle
is a period of use from fully charged, to fully discharged, and fully recharged again.

Q: If I want to charge a solar LiFePO4/Lithium Ion battery, which already has PCB, would a normal SLA controller work fine?
A: For LiFePO4 / Lithium-Ion battery, we always recommend using the LiFePO4/Lithium-Ion Solar Controller. Especially if you are using the battery
as UPS (backup power supply). The Lead-Acid solar controller will constantly provide pulse current to the battery, in the long run, it might
damage the PCB. So the PCB won't be able to protect the battery when it should be.

Q:I am a distributor. Can I cooperate with the battery warehouse for a long time?
A: Yes, Individual pricing for large scale projects and wholesale demand is available

Q: Why hasn't my ups or FedEx transportation number been updated?
A: This is normal, in countries with tariffs, our packages need to pass the customs of your country before they can be delivered to the local
UPS or FedEx. Once they pass the customs and update the transportation number, you can usually receive the goods within 3-5 days.

Q: Are the cells I bought balanced?
A:We know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure
that the internal resistance, voltage, and capacity of cells are completely matched and balanced before delivery. This process is very necessary.





Contact us if you need more details on 3.2V 230ah CALB Battery. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about 230ah LiFePO4 Battery Cell、3.2V Lithium Iron Phosphate Battery. If these products fail to match your need, please contact us and we would like to provide relevant information.
