Grade a 3.2V 20ah Prismatic LiFePO4 Lithium Battery Cells for Electric Vehicle/Solar Enery
Product Description
- Product Description
- Product Parameters
- Certifications
- Packaging & Shipping
- Company Profile
- Our Advantages
- FAQ
grade a 3.2v 20ah prismatic lifepo4 Lithium Battery cells for electric vehicle/solar enery
This battery is prismatic LiFePO4 Battery with Aluminum case.
Store the battery in clean, dry room, at -5ºC~35ºC, keep
Application: UPS
| Item | Spec | Remarks | |
| Rated Capacity | 20Ah | 1/3C Discharge | |
| Rated voltage | 3.2V | ||
| Cut off voltage | 2.0V | ||
| Rated charge model | CC/CV | 0ºC~40ºC | |
| Rated charge current | 6.67A(1/3C) | ||
| Max charge current | 100A (5C) | Continuous | |
| Rated charge voltage | 3.65V | -20ºC~60ºC | |
| Rated discharge current | 6.67A(1/3C) | ||
| Max discharge current | 100A(5C) | Continuous | |
| Impedance | ≤2mΩ | ||
| Weight | ≤600g | ||
| Energy density | 106.67wh/kg | 205.23wh/L | |
| Environment Temp | Charge | 0ºC~50ºC | |
| Discharge | -20ºC~60ºC | ||
| Storage Temp | In 1 Month | -20ºC~60ºC | Relative humidity 45~75 |
| In 3 Month | -20ºC~45ºC | ||
In 1 year | -5ºC~30ºC | ||
The lithium battery is Dangerous Good for shipment by Sea and By air and they should be shipped under the regulation of UN3480. All EVL
Batteries are packaged by DG plywood case and we provide UN38.3 test reports and MSDS. Please check shipping cost before place
Order: The lithium battery is Dangerous Good, the shipping cost is very different, so please check shipping cost before placing order.

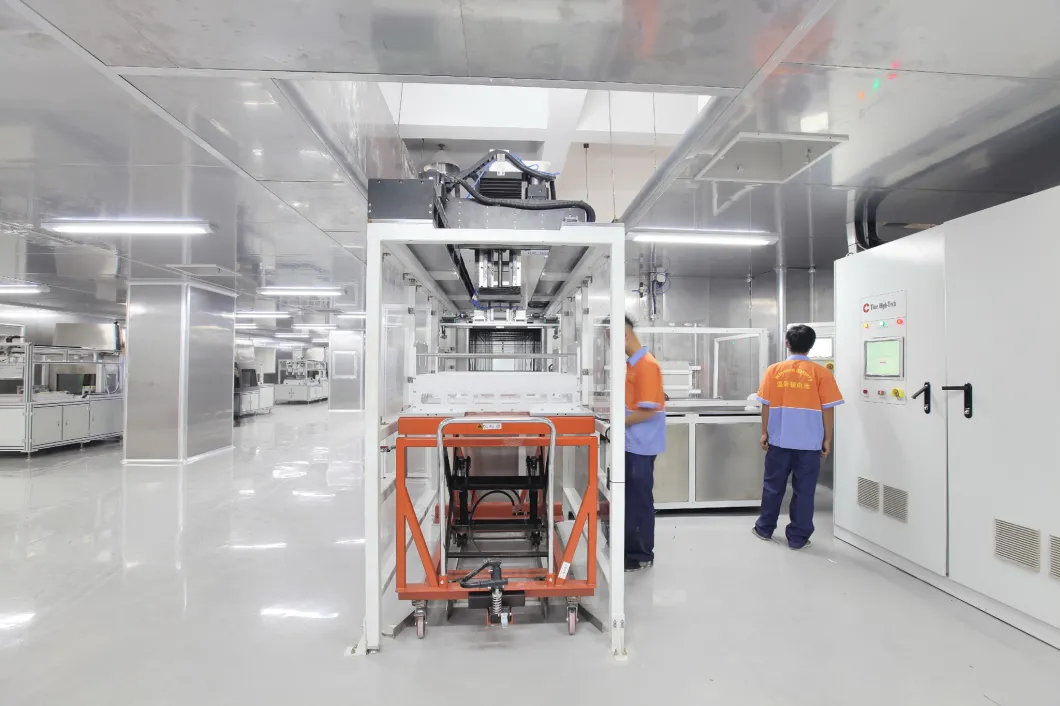

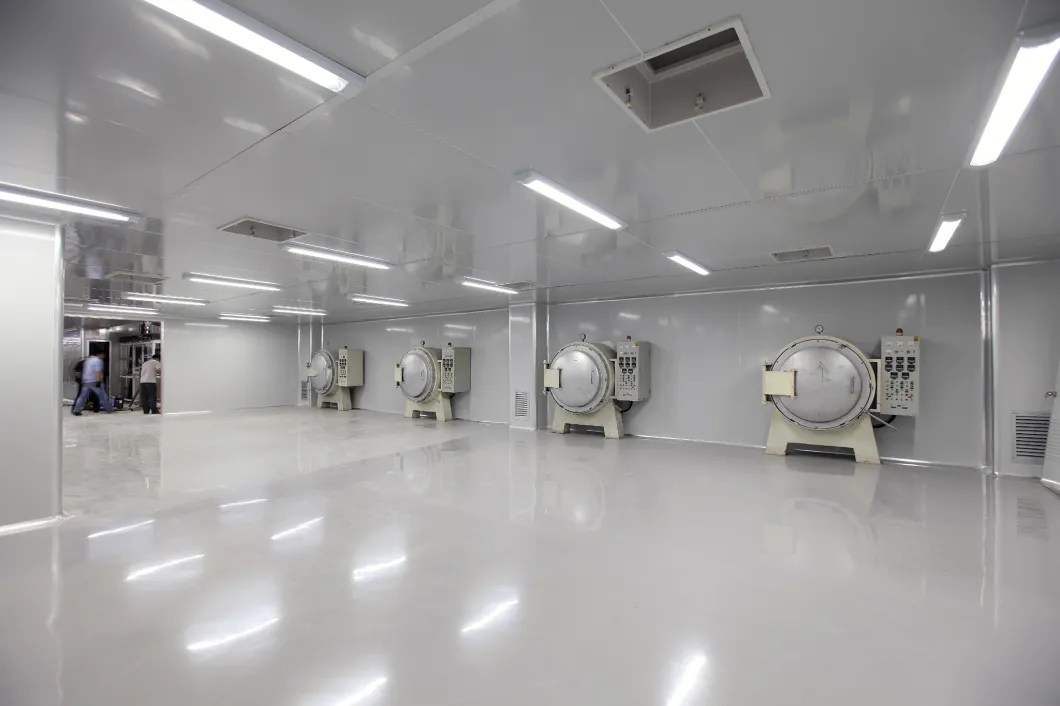

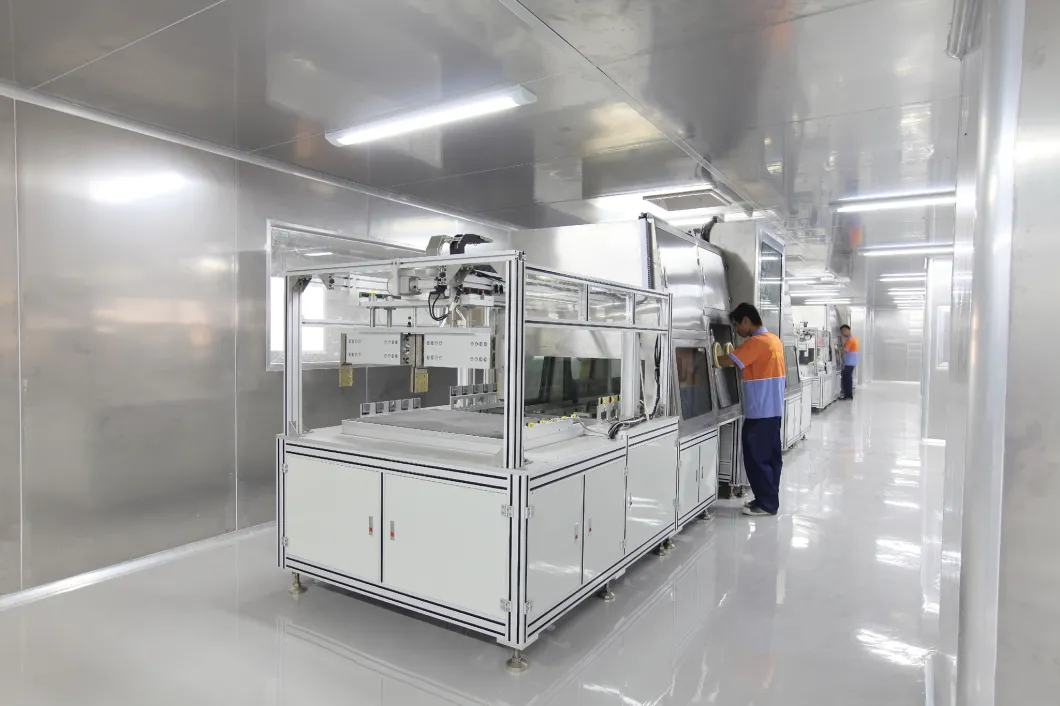

EVL Battery Limited is a leading NCM Lithium Battery manufacturer from China and its public company in the Hongkong Stock Exchange
market. There are 4 factories in Fujian and Guangdong. The production capacity of 4 factories is as much as 20 GWh per year. EVL Battery
Limited is the number one Lithium Battery manufacturer from China.
Our Services & Strength
We provide high-quality EVL Battery to clients all over the world and help clients deliver batteries from China to them by sea and by air at a
reasonable price. And we provide the necessary technical support and warranty to you!
Q: What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle
is a period of use from fully charged, to fully discharged, and fully recharged again.
Q: If I want to solar charge LiFePO4/Lithium-Ion battery, which already has PCB, would a normal SLA controller work fine?
A: For LiFePO4 / Lithium-Ion battery, we always recommend using the LiFePO4/Lithium-Ion Solar Controller. Especially if you are using the battery
UPS (backup power supply). The Lead-Acid solar controller will constantly provide pulse current to the battery, in the long run, it might
damage the PCB. So the PCB won't be able to protect the battery when it should be.
Q: I am a distributor. Can I cooperate with the battery warehouse for a long time?
A: Yes, Individual pricing for large scale projects and wholesale demand is available
Q: Why hasn't my ups or FedEx transportation number been updated?
A: This is normal, in countries with tariffs, our packages need to pass the customs of your country before they can be delivered to the local
UPS or FedEx. Once they pass the customs and update the transportation number, you can usually receive the goods within 3-5 days.
Q: Are the cells I bought balanced?
A: We know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the
Internal resistance, voltage, and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
Product Categories : LiFePO4 Battery > Others LiFePO4 Battery
